Content

產品資訊

產品規格

Mounting
Screw
Side Clearance
12.7 mm plus 0.8 minus 0
height
45.7 mm
Loading
100 lb (45kg)
Size
250,300,350,400,450,500,550,600,650,700 mm
feature
32 mm hole pattern. Simple access mounting on drawer and cabinet members. Breathing tabs self adjust to side clearance. Hold/close function, Lever disconnect for drawer removal.
surface Treatment
  • Clear Zinc
  • Black Zinc
  • GI
  • Powder coating on drawer frame
  • Anodizing
Option
Soft-closing, Interlock, 1" over-travel back socket.
包裝說明
  1. 15 pairs individually poly-packaged, no screws.

快速安裝

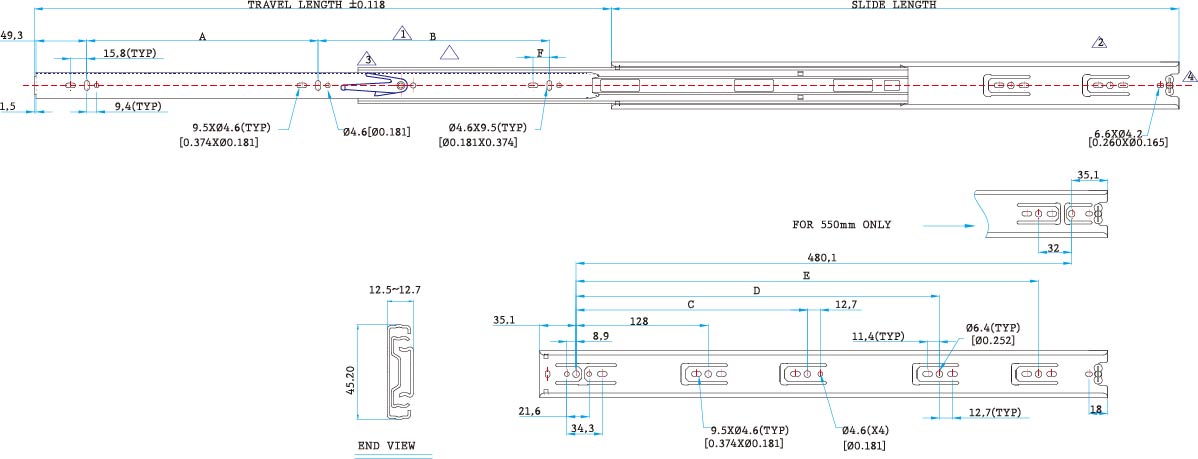

NJ-31D88 Full Extension Slides,
